Gigabit Ethernet Fiber Media Converter , 10/100/1000M SFP Media Converter

Name: Gigabit Ethernet Fiber Media Converter 101001000M SFP Media Converter
Brand: Fibery
Price: 1 USD

Quality Gigabit Ethernet Fiber Media Converter , 10/100/1000M SFP Media Converter for sale

Brand Name : Fibery

Model Number : FYMCSFP

Place of Origin : China

MOQ : 1Pcs

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram,Paypal

Supply Ability : 20000Pcs/Month

Delivery Time : 4-6 work days

Packaging Details : inner box+outer carton

Product name : 1000M Sfp Media Converter

Fiber type : SM / MM

Connector : FC ST SC

Data rate : self-adaptive 10/100M or 10/100/1000M

Fiber distance : 300M-20KM

Wavelength : 1310nm~1610nm

Power supply : external/internal power supply

Operating temperature : 0℃ to +70℃

Utp port : 1-port RJ45

Warranty : 1 Year

Contact Now

Factory Price 10/100/1000M Fiber Converter Gigabit Ethernet SFP Media Converter

Description

10/100m sfp optical media converter can convert Optical-Electric Ethernet signals between 10/100M UTP interface (TX) and 100M optical fiber interface (FX).
It could extend traditional 10/100M Fast Ethernet to the distance of 90km through single optical fiber link. It possesses stable performance and good quality by adopting latest IC from USA and Taiwan.
It must be used in couples,because the transmitted optical differs from the receive optical in wavelength. 6 Group LED indicated lights could fully monitor the working conditions of Converters.
It is easy for users to observe network operation.

Feature

1000Base-T to 1000BASE-SX/LX Converter
Standard : IEEE 802.3z & 802.3ab
Interface: 1 x RJ-45 connector
1 x SFP Slot
MDI/MDIX Auto-Crossover supported
LED: Power , DUP,FP-LINK,RX,1000,TX
Plug-and-Play installation
Support Link Alarm
Support Jumbo Frame (64-9216 Byte)
Support Voltage Monitor
Supporting 1600 bytes packet for management.
Converter working mode could be chosen: Store and forward switch mode, Modified cut-through switch mode, or Converter mode.
Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex
Internal circuit of prevented thunder could greatly reduce damage of converters caused by thunderbolt induction.

Specificaion

Standard Protocol:IEEE802.3u,10/100Base-TX and 100Base-FX;
Connector:UTP Connector: RJ-45, 10/100Mbps; Fiber Connector: SC, 100Mbps
Cable UTP: Cat. 5 UTP cable (the max distance up to100m)
Operation mode: full duplex mode or half duplex mode
LED Power, FX SD, FX Link/Act, TX 100, TX FDX, TX Link/Act.
Power supply parameter:
Outside: 5V DC 1A Built-in: 110-265V AC 48VDC
Environmental temperature: 0℃-60 ℃
Relative humidity: 5%-90%
TP cable: Cat5 UTP cable
Fiber :50/125,62.5/125um multi-mode fiber ; 9/125,10/125um single-mode fiber.
Dimensions: External power supply: 26mmx 71mm x 94mm

Installation:

Attach fiber cable from the converter to the fiber network. The fiber connections must be matched – transmit socket to receive socket.

Attach a UTP cable from the 1000BASE-T network to the RJ-45 port on the converter.

Connect the power adapter to the converter and check that the Power LED lights up. The TP-Link and RX LEDs will light up when all the cable connections are satisfactory.

LED Description:

LED	function	status	Description
DUP	UTP port duplex LED	ON	Full duplex
DUP	UTP port duplex LED	OFF	Half duplex
FP-LINK	Fiber port link/action status LED	ON	Fiber link is ok.
FP-LINK	Fiber port link/action status LED	OFF	Fiber link is fail.
PWR	Power LED	ON	Power is ON.
PWR	Power LED	OFF	Power is Fail.
RX	UTP port link/action status LED	ON	The TP link in ok
		Blink	Data is been received or transmitted
		OFF	The TP link in fail
1000	UTP port speed LED	ON	1000M speed
1000	UTP port speed LED	OFF	Power is fail
TX	UTP port link/action status LED	ON	The data send out

Product Pictures

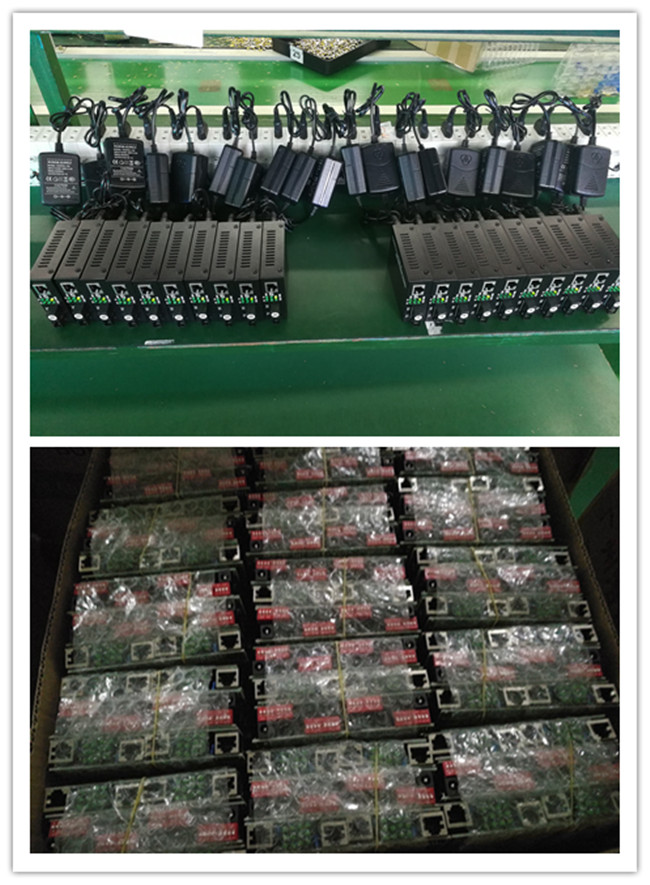

Factory Image

Shipping

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-6 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
